Industrijska LED rasvjeta: LED reflektor model FGD HB

led-reflektor-model-fgd-hb-635828501855279471-2_720_405

led-reflektor-model-fgd-hb-635828501853412060-1_720_405

led-reflektor-model-fgd-hb-635828501857310724-4_720_405

led-reflektor-model-fgd-hb-635828501856373223-3_720_405

Industrijska LED rasvjeta

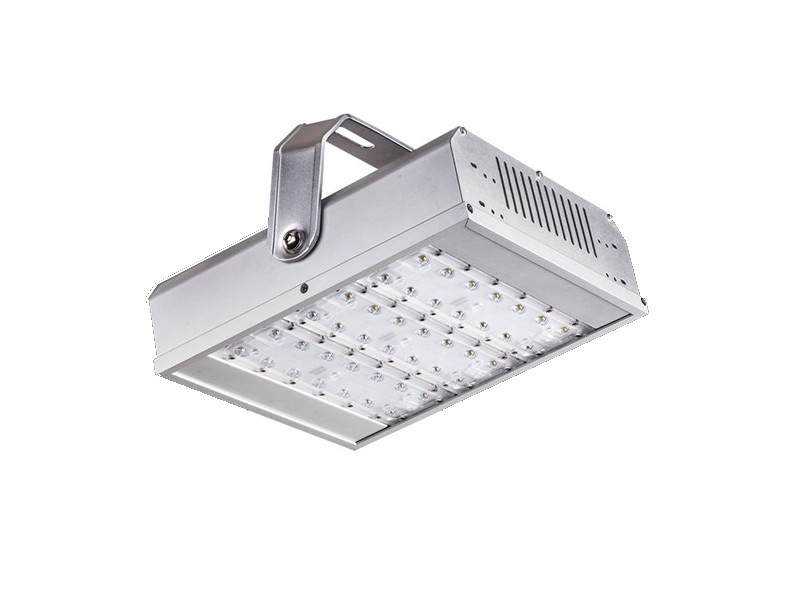

LED reflektor model FGD HB

Šifra proizvoda: FGD-HB

HIGH BAY - profi LED reflektor - serija FGD / HB

Dizajniran za unutarnja i vanjska rješenja rasvjete za

SPORTSKE TERENE, VISOKE RASVJETNE STUPOVE,

INDUSTRIJSKE HALE

kvalitetna zamjena za VTF, MH HID reflektore

Pošalji upit

Ugrađen revolucionarni built-in driver - pouzdan, vrhunskog dizajna i jednostavnog izgleda

ZGSM® H-serija LED reflektori koristite vrlo velik svijetlosni učinak s LUMILEDS® LUXEON TX svjetlosnim izvorom i vrlo pouzdan HLG serije Mean Well® driverom5 godina jamstva na svjetiljke.

Product	ZGSM-FGD40HB	ZGSM-FGD80HB	ZGSM-FGD120HB	ZGSM-FGD160HB	ZGSM-FGD200HB	ZGSM-FGD240HB
Nominal Wattage	40W	80W	120W	160W	200W	240W
Drive Current	850 mA	850 mA	850 mA	850 mA	850 mA	850 mA
Number of Modules	1	2	3	4	5	6
Input Voltage	100-240V / 277V AC 50/60Hz	100-240V / 277V AC 50/60Hz	100-240V / 277V AC 50/60Hz	100-240V / 277V AC 50/60Hz	100-240V / 277V AC 50/60Hz	100-240V / 277V AC 50/60Hz
Max. Current @ 120V	0.41 A	0.82 A	1.23 A	1.65 A	2.06 A	2.47 A
Max. Current @ 208V	0.24 A	0.47 A	0.71 A	0.95 A	1.19 A	1.42 A
Max. Current @ 240V	0.21 A	0.41 A	0.62 A	0.82 A	1.03 A	1.23 A
Max. Current @ 277V	0.18 A	0.36 A	0.53 A	0.71 A	0.89 A	1.07 A
Operating Temperature	-40 °C to +50 °C	-40 °C to +50 °C	-40 °C to +50 °C	-40 °C to +50 °C	-40 °C to +50 °C	-40 °C to +50 °C
Power Factor (PF)	> 0.95	> 0.95	> 0.95	> 0.95	> 0.95	> 0.95
Total Harmonic Distortion (THD)	< 20%	< 20%	< 20%	< 20%	< 20%	< 20%
Lumen Output (+/- 5%)	4400 lm	8800 lm	13200 lm	17600 lm	22000 lm	26400 lm

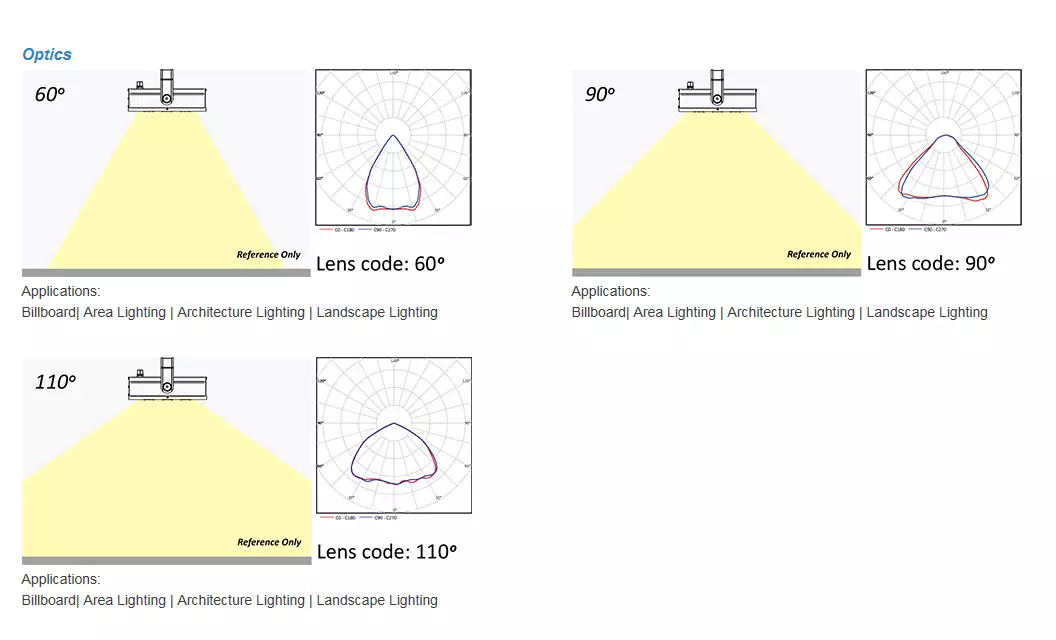

Optic	60°, 90°, 110°	60°, 90°, 110°	60°, 90°, 110°	60°, 90°, 110°	60°, 90°, 110°	60°, 90°, 110°
CRI	Minimum 70 CRI	Minimum 70 CRI	Minimum 70 CRI	Minimum 70 CRI	Minimum 70 CRI	Minimum 70 CRI
CCT	3000K 4000K 5000K 5700K	3000K 4000K 5000K 5700K	3000K 4000K 5000K 5700K	3000K 4000K 5000K 5700K	3000K 4000K 5000K 5700K	3000K 4000K 5000K 5700K
Rating	IP66, IK10	IP66, IK10	IP66, IK10	IP66, IK10	IP66, IK10	IP66, IK10
Heat Radiator	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum
Lens	PC (UV resistance)	PC (UV resistance)	PC (UV resistance)	PC (UV resistance)	PC (UV resistance)	PC (UV resistance)
